TIRF + Photomanipulation

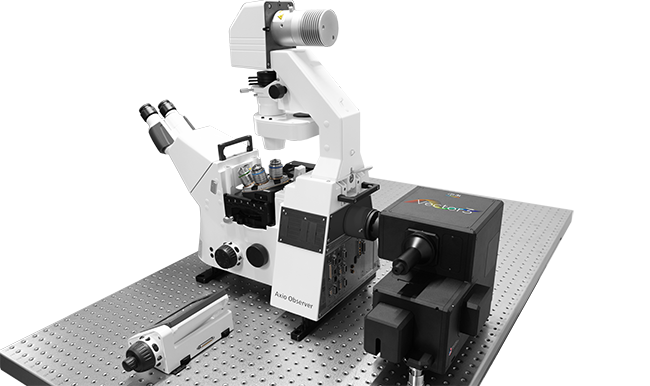

Vector3 is a motorized, spinning TIRF illuminator with three key imaging modalities: TIRF, photomanipulation and widefield epifluorescence. Intelligent beam steering and optical design allow for all three imaging modes to be combined in one compact device. Vector3 offers an expansive TIRF field of view (FN20) designed for modern sCMOS cameras. A motorized scan lens corrects for sample height variation and ensures ideal TIRF illumination and photomanipulation spot size across the visible spectrum.


VESICLE TRAFFICKING
Mammalian cells labeled with Lysobrite Red


EXOCYTOSIS
Mammalian cells labeled with Lysobrite Red.

Highlights

Massive Field of View

Vector3 is designed to fill a field of view matched to the ever-increasing sensor size of state-of-the-art sCMOS cameras. The resulting FN20 image space allows for TIRF imaging across 150μm (100x objective) to 238μm (63x objective). Photomanipulation regions can also be drawn anywhere in the image with consistent power across all regions. The large field of view increases sample sizes and reduces overall experimental time.

Photomanipulation

Photomanipulation is a powerful tool for studying membrane dynamics, receptor and vesicle movement, and photo conversion of specific molecules. Vector3 shares the same galvo scanners between TIRF and photomanipulation, leading to near simultaneous photobleaching and photoactivation. A custom partial reflecting dichroic allows for switching between spinning disk imaging and photomanipulation experiments in milliseconds – no filter cube swap required.

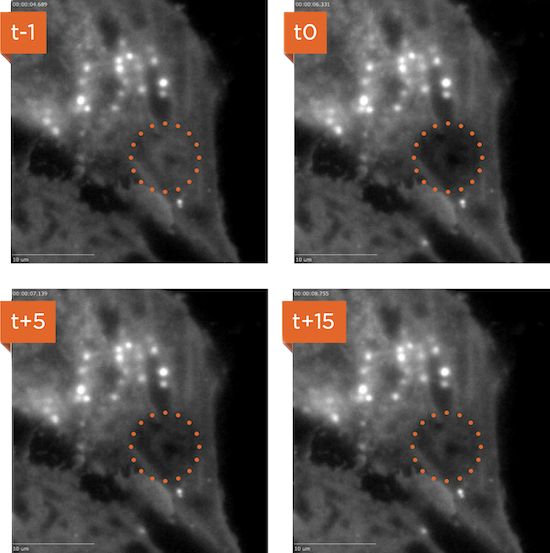

PHOTOBLEACHING
Mammalian cells labeled with LysoBrite Red showing photobleaching
ROIs (dashed circles) over time.
SlideBook Analysis
SlideBook offers extensive FRAP curve analysis tools for easy graph
generation and intensity quantification.

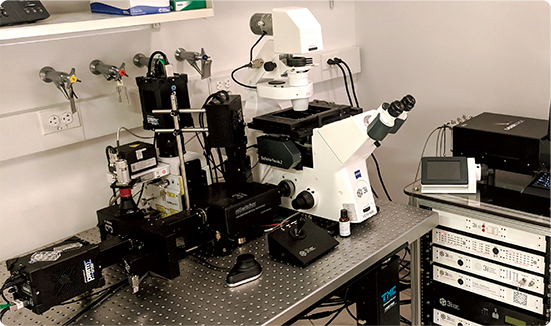

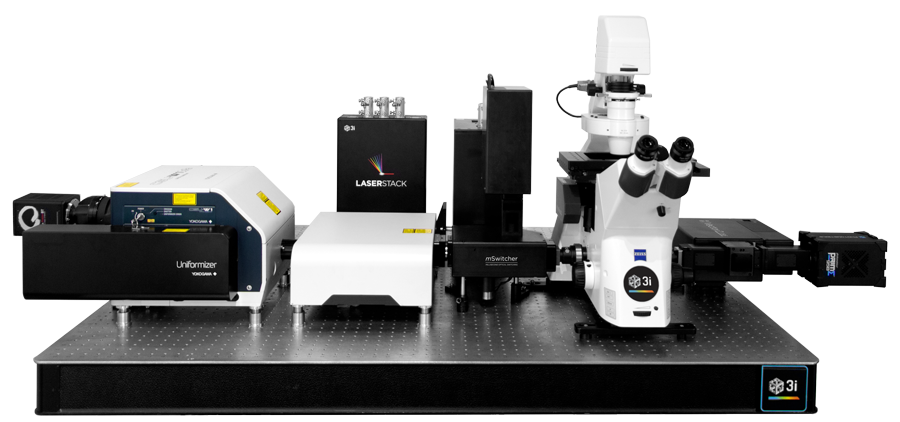

Marianas Multimodal Platform

Combine Vector3 with spinning disk confocal, holography, ablation, and lightsheet systems for incredible flexibility on one system. Seamlessly control and switch imaging modes via SlideBook. LaserStack with FiberSwitcher enables millisecond switching of up to 7 lasers across modalities.

Technology

Total Internal Reflection Fluorescence

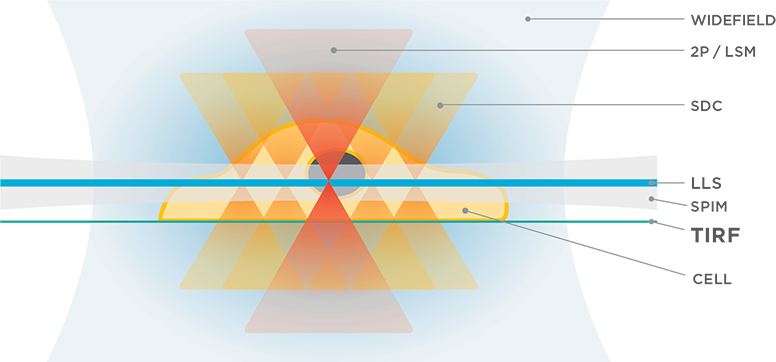

TIRF microscopy offers a thin excitation volume of 100-150nm leading to high signal-to noise imaging. TIRF is achieved when the excitation angle of the laser is increased past the critical angle dictated by the refractive index of glass and specimen. The resulting evanescent wave decays rapidly as it moves away from the coverslip and allows for illumination just above the glass. This thin illumination volume is ideal for samples that are difficult to resolve in widefield or even confocal imaging. The relatively low excitation power of TIRF microscopy allows for gentle, long-term imaging.

TIRF

Widefield

Composite

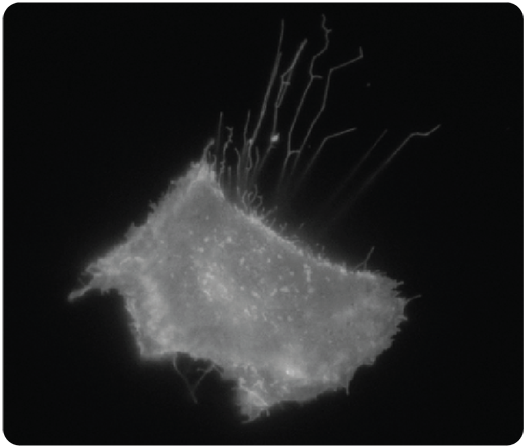

Comparison between TIRF and widefield epi-fluorescence. When in TIRF, only the bottom of the cells are visualized, leading to a large increase in signal to noise of the membrane and organelles interacting with the membrane.

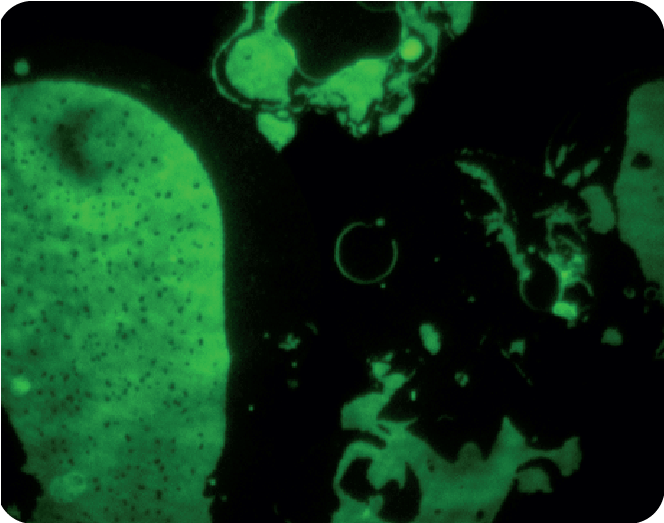

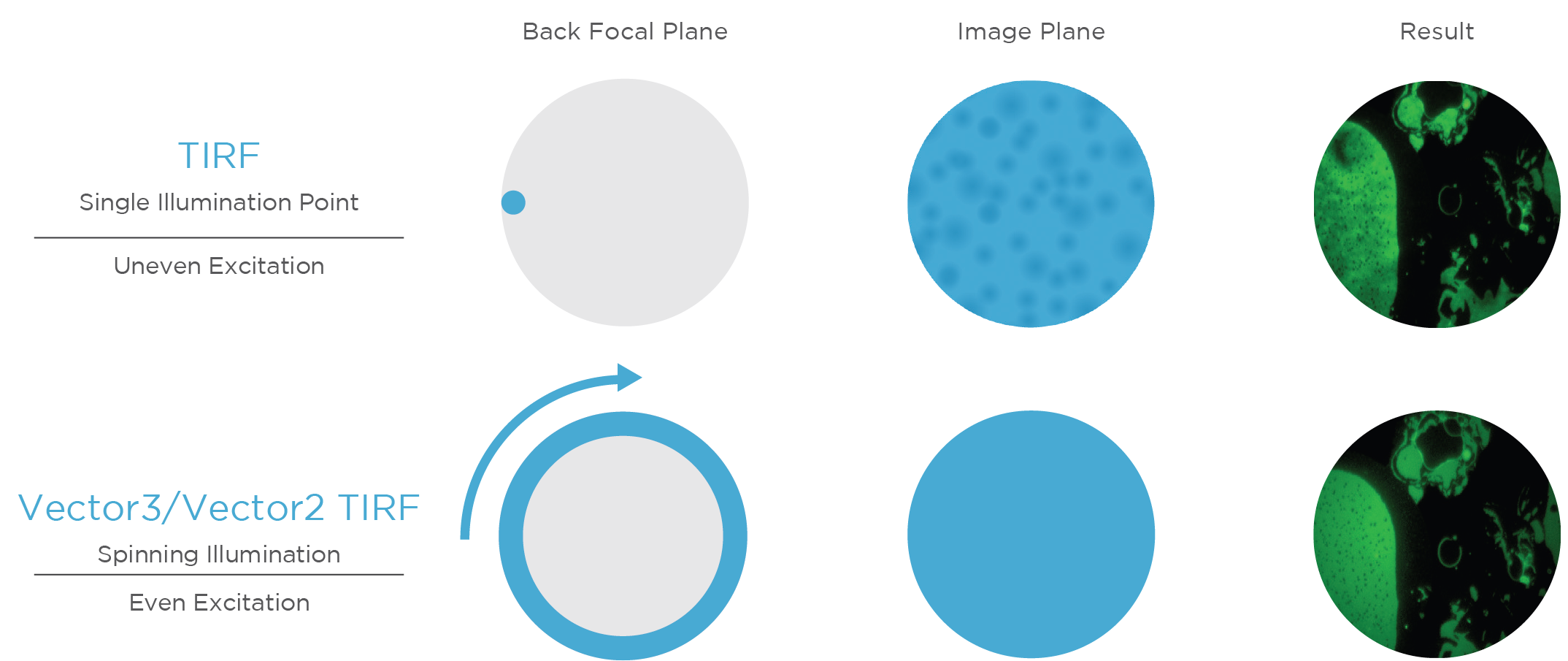

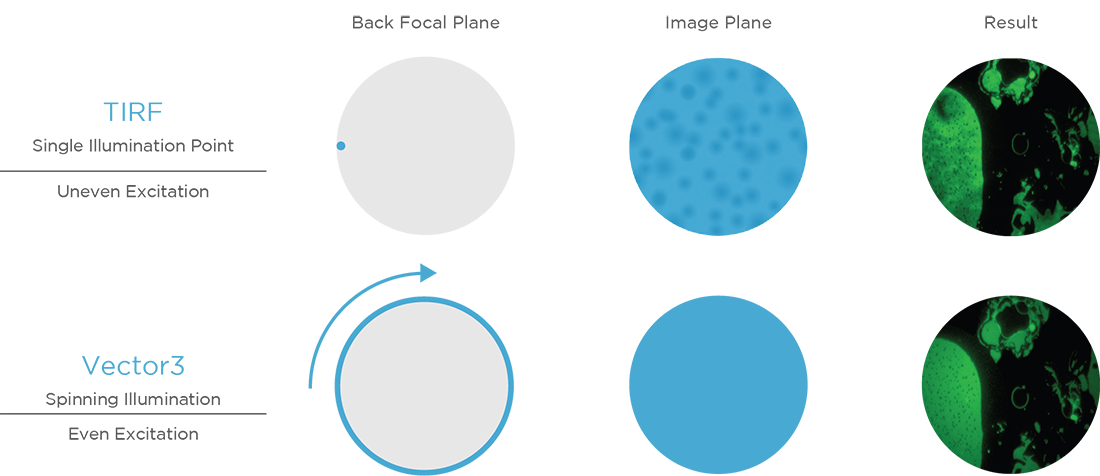

Traditional TIRF systems use a fixed illumination spot to create the evanescent field. This leads to poor illumination with shadows and polarization artifacts across the field of view. Vector3 uses two fast galvo mirrors to spin the illumination spot, evening out the excitation pattern by averaging all of the positions together during a single camera exposure. The result is a clean, even field of illumination that allows for more consistent, quantitative analysis of each experiment.

HILO Microscopy

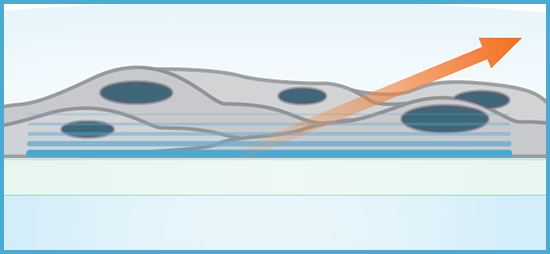

Vector3 is also designed for highly inclined and laminated optical sheet (HILO) microscopy. HILO illumination (shown in orange) is achieved just before reaching the critical angle required for TIRF evanescent wave illumination (shown in blue). HILO offers high signal-to-noise with greater penetration for imaging beyond the membrane to the nucleus and through the cell body. Combined with LaserStack and a selection of high and low-powered lasers, Vector3 is a versatile single-molecule imaging platform in both TIRF and HILO modalities.

Super Resolution Imaging

Vector3 is a capable super-resolution imaging system via single molecule localization microscopy (SMLM) techniques. Laser powers up to 2W ensure high laser power density across the sample in both TIRF and HILO modalities. SlideBook is compatible with established analysis pipelines for quick data processing.

TIRF

Super-Resolution

TIRF image (left) and thunderSTORM reconstruction (right) of Alexa647- labeled microtubules in COS7 cells. Courtesy of Dr. Chris de Graffenried, Brown University.

Vector2 TIRF

Vector2 TIRF mounted on the sideport of Zeiss Axio Observer

Vector2 TIRF is optimized for use with 512 x 512 EMCCDs (FN12) for sensitive TIRF imaging of biophysical experiments. The modular nature of Vector2 TIRF supports the documentation port on most research-grade inverted microscope frames for easy integration with existing systems.

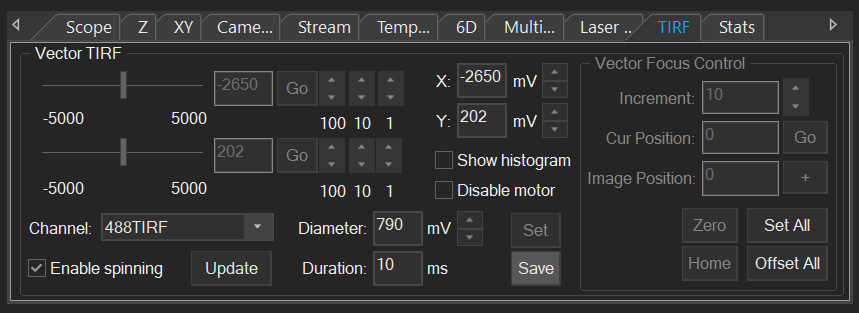

SlideBook Software for Acquisition and Analysis

SlideBook software supports research microscopy through the entire experimental process. By managing everything from instrument control to image processing and data analysis, SlideBook allows scientists to focus on investigation rather than instrumentation. SlideBook controls hundreds of instruments in and around the microscope from dozens of manufacturers enabling researchers to integrate their preferred components and upgrade to the latest devices once available.

Slide

User-Selectable App Appearance

Select a color scheme from dozens of options
Switch on-the-fly from dark to light themes

SlideBook Open File Format

Directory-based open file format for big data and high performance computing applications

Volume Rendering

3D and 4D volume view visualization tools support a user- specified bounding box and a storyboard interface where multiple perspectives can be assembled into a single movie

NVIDIA CUDA GPU Acceleration

GPU acceleration of computationally-intensive operations such as deconvolution

System Capture Consoles

Consoles are a single easy-to-use window featuring all frequent controls and status displays

3D Capture Status

Multiwell and Montage

Volumetric projection during 4D capture supported across all instruments

Streamlined multiwell interface
Montaging with a variety of methods

Capabilities

Capture

Control hundreds of devices including microscopes, stages, lasers, wheels, piezos, scanners, shutters and much more.

View

Visualize data through any numbers of portals, from single images to z-stacks, time lapse, color channels and 4D views.

Analyze

Analyze images and extract statistical data via a wide variety of algorithms while maintaining original data integrity.

Scripting

Macro scripting for capture and analysis enhances the flexibility and power available to users.

Communicate

Present and export data easily as 16-bit TIFFs, 3D movies, graphs or spreadsheets. Data is directly portable to MATLAB and Excel and adheres to Open Microscopy Environment (OME) standards.

Partners

MATLAB

Through hierarchical and conditional capture, user-supplied MATLAB programs can control experimental workflows.

Microvolution

Microvolution software delivers nearly instantaneous deconvolution by combining intelligent software programming with the power of a GPU.

Aivia

Aivia is an innovative and complete 2D-to-5D image visualization, analysis and interpretation platform with artificial intelligence-guided image analysis.

Dell

The latest high-power computer workstations control all microscope hardware and enable high-speed processing, segmentation and volume rendering of terabyte (TB) datasets.

Powerful Computer Workstation

3i provides high-power computer workstations to control all microscope hardware necessary for acquisition as well as enable processing, segmentation and volume rendering of terabyte (TB) datasets without additional computer resources.  Solid state drives in RAID configurations provide high-speed storage for capture, while traditional high-capacity hard drives provide longer-term storage of datasets. NVIDIA Quadro GPUs work in parallel with the latest Intel Xeon processors for fast stitching, processing and rendering of captured data.

Petabyte Data Storage

3i offers DDN® unified storage systems to allow direct acquisition and analysis, without time-consuming file transfers, at volumes ranging from 500TB to over 2PB. DDN storage systems are an ideal choice for labs and facilities looking to optimize acquisition workflows and/or incorporate data analysis pipelines.

Application Data

CELL MORPHOLOGY
Courtesy of Dr. Chris Bakal and Oliver Inge at the Institute of Cancer Research in London.
Cell Dynamics
Lifeact GFP in mammalian cells.

CELL MIGRATION
Paxillin-GFP and Actin-Mars expressed in mammalian cells migrating across the coverslip.

GROWING MICROTUBULES
EB3 GFP expressed in mammalian cells.
CYTOSKELETAL DYNAMICS
GFP-cax expressed in RPE-1 cells.
IN VITRO MICROTUBULES
Alexa Fluor 488 labeled microtubules on Alexa Fluor 647 labeled “seeds.” Courtesy of Dr. Margot Quinlan, University of California Los Angeles.
